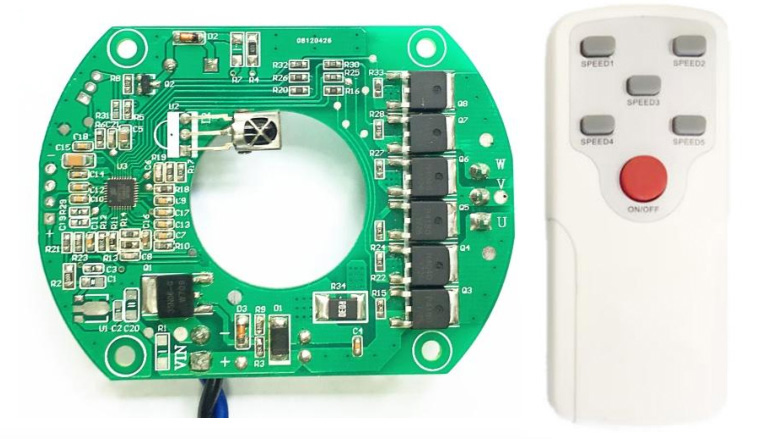

Ceiling Fan PMSM Motor Controller
PMSM Motor Controller — Ceiling Fan PMSM Motor Controller
Detailed information:
| Product ID | HFC-LMZ-CF1 |
| Number of board layers | Single / Double layer PCB |
| Material | Copper |
| Function | 1. Speed regulation for 5th gear |
| 2. Fan stall protection, over-current and over-voltage protection | |
| 3. Wireless infrared remote control | |
| 4. Upwind start | |
| 5. The starting inversion angle is small | |
| Certification | ISO9001, CE, Patent certificate |
| Motor Parameter Specification: | |
| Voltage(V) | 12-24Vdc |
| Power(W) | 35W |
| Speed(r/min) | 360RPM |
| Motor specification | Sine wave control PMSM |
Product Description:
PMSM motor speed controller printed circuit boards are mostly made of copper rigid materials, and single/double-layer printed circuit board options are also available. As a professional controller manufacturing company, we can provide one-stop services, such as controller design, controller manufacturing, controller assembly and controller services.
As for the model HFC-LMZ-CF1, using sine wave control scheme, it has basic speed regulation and protection functions. And it can even be equipped with special infrared remote control lines. With the servo controller scheme, the power and speed can be completely customized according to the customer’s requirements, thus providing customized services to our controller.
We will deliver the controller as a sample within 1 week after payment. For mass production, we can deliver the controller a little earlier. We have our own controller factory, about 30 minutes’ drive. Able to meet the needs of customers.
If you have interesting for this motor speed controller, please feel free to contact us by info@hf-motion.com

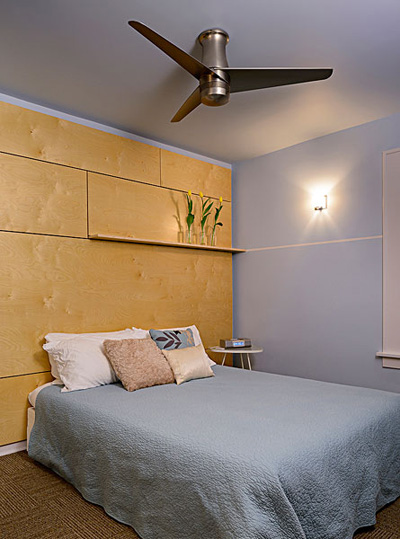

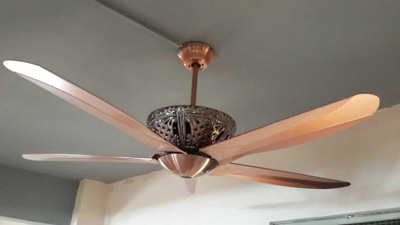

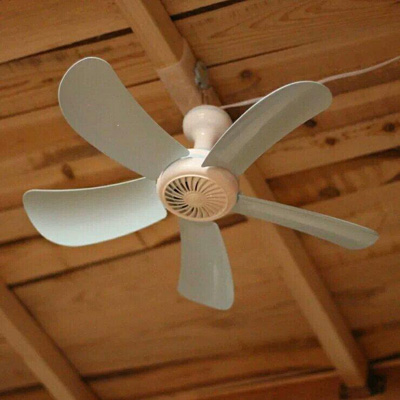

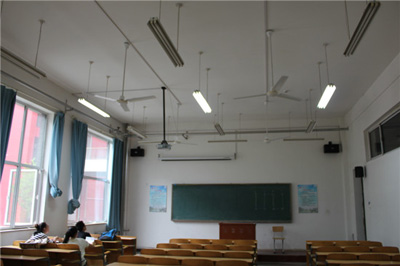

Application:
Advantages of our Controller:
1.Lower price
2.Faster batch delivery time
3.Special function customization
4.Reliable quality
For customized Motor Controller, please contact our technician. Ordinary, we have to know the following information to get a professional proposal:
1.Required functions.
2.Application
3.Special component requirements
4.Motor parameter specification
