220V 250W BLDC Motor Controller for Air Cooler
- PRODUCT DETAIL
Detailed information:
|
Product ID |
HFC—LF220P250S1400 |
|
Certification |
ISO9001, CE, Patent certificate |
|
Motor Parameter Specification: |
|
|
Voltage(V) |
220VAC |
|
Rated Power(W) |
250 |
|
Output Current(A) |
1.1 |
|
Rated Speed(RPM) |
100~1400 |
|
Control Mode |
FOC position-less control |
|
Working Duty |
S1 |
Product Description:

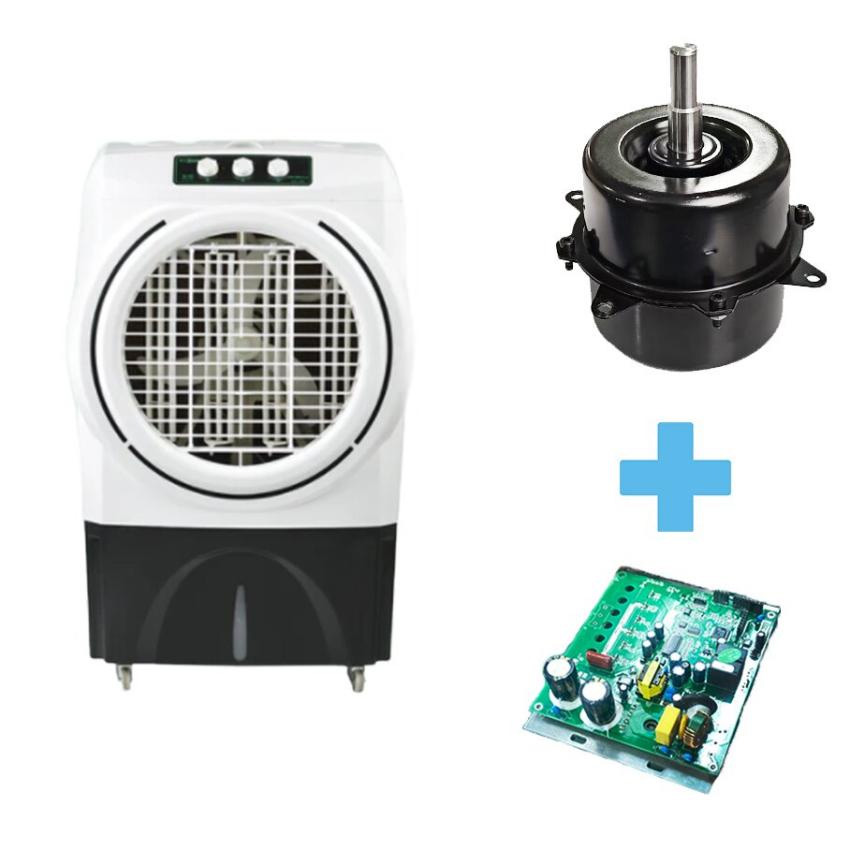

Our solution HFC—LF220P250S1400 is BLDC motor with high performance controller for air cooler application and already used in the market. The magnet type is neodymium iron boron and the wire used 100% copper. With all protections such as voltage protection and so on. The solution also include RS485 can communicate with display screen it will be easier for customer to monitor and operate. The voltage range is from 180vac to 240vac. The speed of the aircooler can be adjusted by knob such as 1400rpm, 1250rpm, 1000rpm and so on.
Air Coolers Product Features

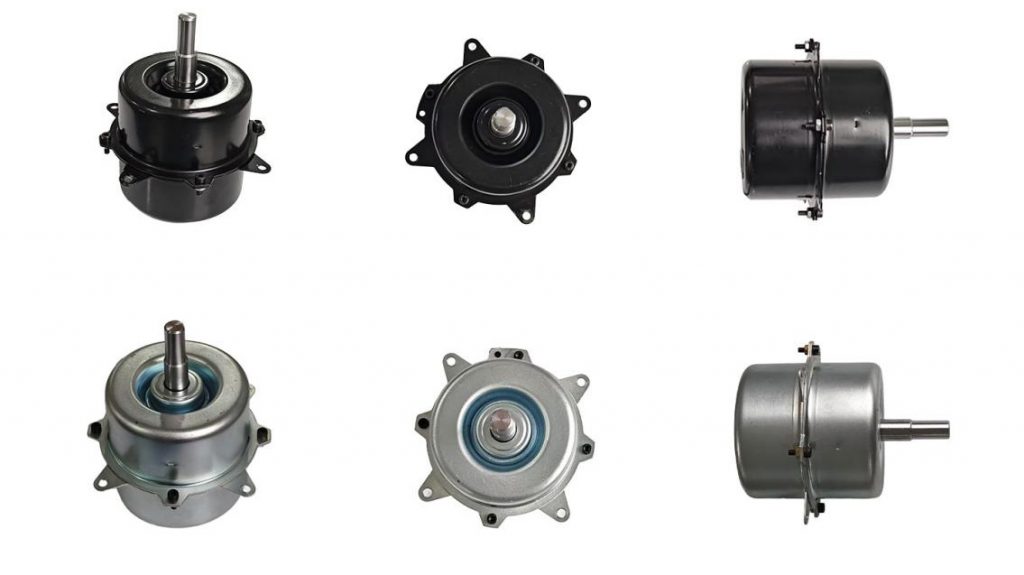

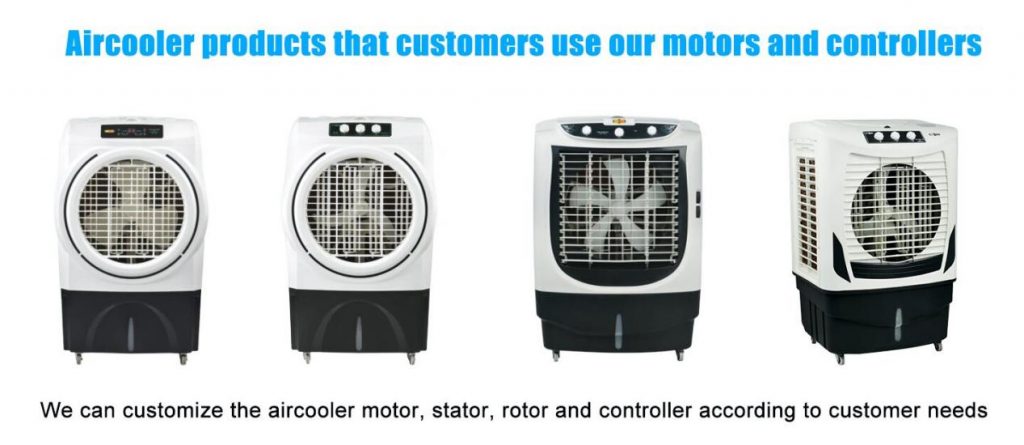

1. We can customize the air cooler motor, stator, rotor and controller according to the customer’s requirements

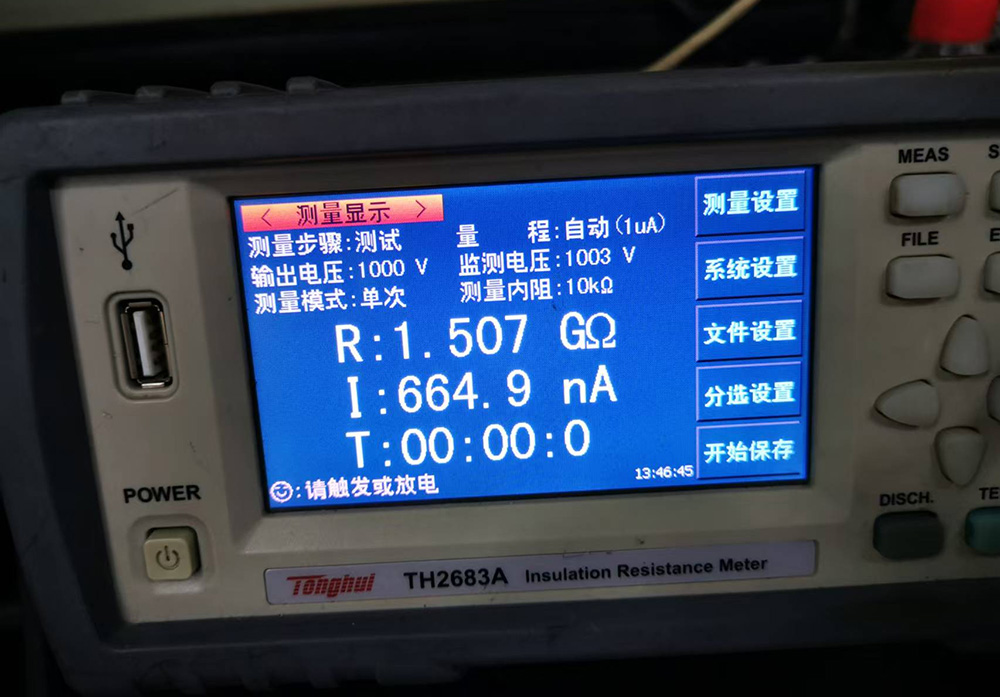

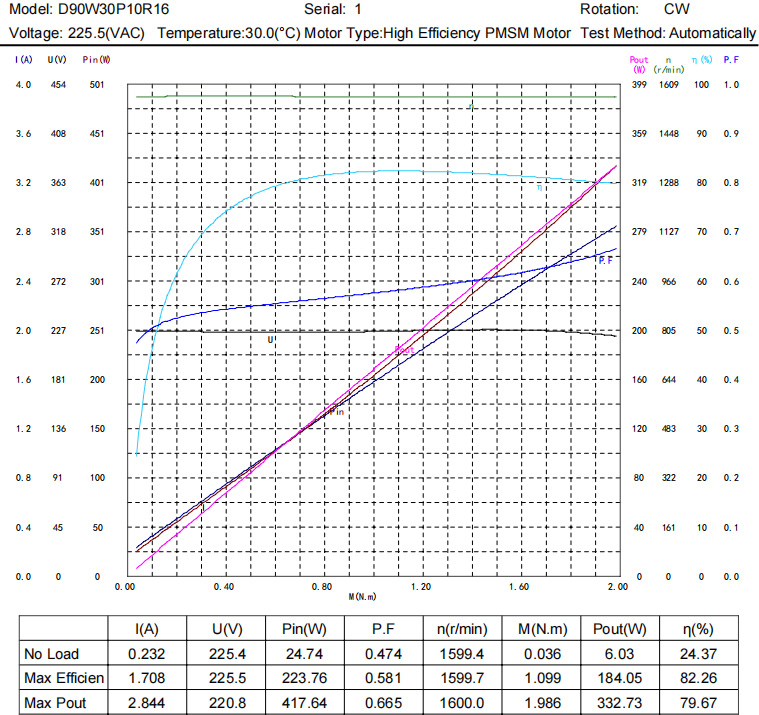

2. Our air cooler products balance the cost，at the same time use the best performance of the magnet that greatly improve the efficiency of the air cooler, up to 82%. Ensuring the consistency of the motor, ground insulation and other performance to reach a very good level. Meanwhile provide a matching controller to solve a BLDC motor and controller one-stop solution, save customer matching process and reduce the customer complaint.
3. We can supply:
- the whole motor
- Stator and rotor
- matched controller
Advantages of our Controller:
- Lower price
- Faster batch delivery time
- Special function customization
- Reliable quality
Application:
For customized Controller, please contact our technician. Ordinary, we have to know the following information to get a professional proposal:
- Required functions.
- Application
- Special component requirements
